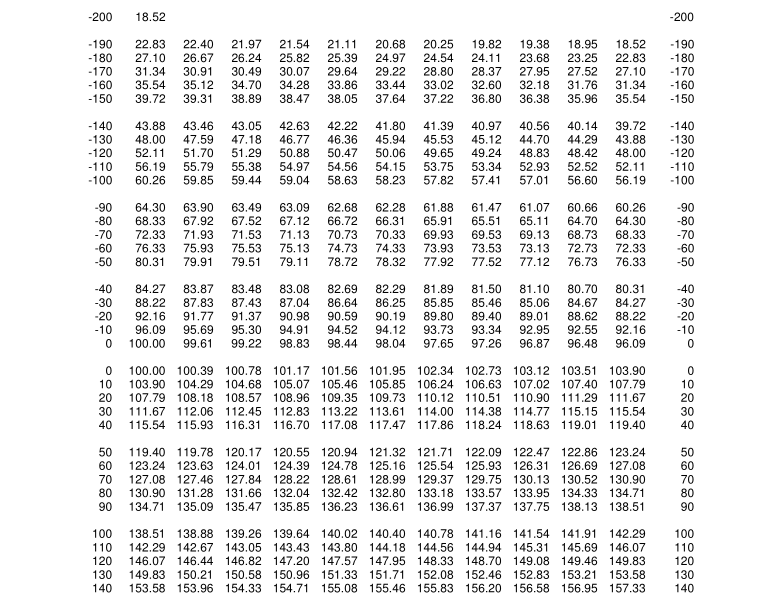

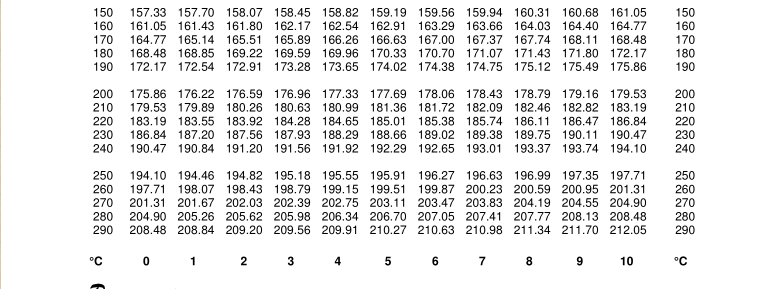

TABLE 29 100Ω Ω Platinum RTD 0.00385 coefficient
temperature in °C
° °C 0 1 2 3 4 5 6 7 8 9 10 ° °C
Resistance in Ohms
° °C 0 1 2 3 4 5 6 7 8 9 10 ° °C
3\UR 0$7,21 ?,1&. 110
Pt ° °C
-200 18.52 -200
-190 22.83 22.40 21.97 21.54 21.11 20.68 20.25 19.82 19.38 18.95 18.52 -190
-180 27.10 26.67 26.24 25.82 25.39 24.97 24.54 24.11 23.68 23.25 22.83 -180
-170 31.34 30.91 30.49 30.07 29.64 29.22 28.80 28.37 27.95 27.52 27.10 -170
-160 35.54 35.12 34.70 34.28 33.86 33.44 33.02 32.60 32.18 31.76 31.34 -160
-150 39.72 39.31 38.89 38.47 38.05 37.64 37.22 36.80 36.38 35.96 35.54 -150
-140 43.88 43.46 43.05 42.63 42.22 41.80 41.39 40.97 40.56 40.14 39.72 -140
-130 48.00 47.59 47.18 46.77 46.36 45.94 45.53 45.12 44.70 44.29 43.88 -130
-120 52.11 51.70 51.29 50.88 50.47 50.06 49.65 49.24 48.83 48.42 48.00 -120
-110 56.19 55.79 55.38 54.97 54.56 54.15 53.75 53.34 52.93 52.52 52.11 -110
-100 60.26 59.85 59.44 59.04 58.63 58.23 57.82 57.41 57.01 56.60 56.19 -100
-90 64.30 63.90 63.49 63.09 62.68 62.28 61.88 61.47 61.07 60.66 60.26 -90
-80 68.33 67.92 67.52 67.12 66.72 66.31 65.91 65.51 65.11 64.70 64.30 -80
-70 72.33 71.93 71.53 71.13 70.73 70.33 69.93 69.53 69.13 68.73 68.33 -70
-60 76.33 75.93 75.53 75.13 74.73 74.33 73.93 73.53 73.13 72.73 72.33 -60
-50 80.31 79.91 79.51 79.11 78.72 78.32 77.92 77.52 77.12 76.73 76.33 -50
-40 84.27 83.87 83.48 83.08 82.69 82.29 81.89 81.50 81.10 80.70 80.31 -40
-30 88.22 87.83 87.43 87.04 86.64 86.25 85.85 85.46 85.06 84.67 84.27 -30
-20 92.16 91.77 91.37 90.98 90.59 90.19 89.80 89.40 89.01 88.62 88.22 -20
-10 96.09 95.69 95.30 94.91 94.52 94.12 93.73 93.34 92.95 92.55 92.16 -10
0 100.00 99.61 99.22 98.83 98.44 98.04 97.65 97.26 96.87 96.48 96.09 0
0 100.00 100.39 100.78 101.17 101.56 101.95 102.34 102.73 103.12 103.51 103.90 0
10 103.90 104.29 104.68 105.07 105.46 105.85 106.24 106.63 107.02 107.40 107.79 10
20 107.79 108.18 108.57 108.96 109.35 109.73 110.12 110.51 110.90 111.29 111.67 20
30 111.67 112.06 112.45 112.83 113.22 113.61 114.00 114.38 114.77 115.15 115.54 30
40 115.54 115.93 116.31 116.70 117.08 117.47 117.86 118.24 118.63 119.01 119.40 40
50 119.40 119.78 120.17 120.55 120.94 121.32 121.71 122.09 122.47 122.86 123.24 50
60 123.24 123.63 124.01 124.39 124.78 125.16 125.54 125.93 126.31 126.69 127.08 60
70 127.08 127.46 127.84 128.22 128.61 128.99 129.37 129.75 130.13 130.52 130.90 70
80 130.90 131.28 131.66 132.04 132.42 132.80 133.18 133.57 133.95 134.33 134.71 80
90 134.71 135.09 135.47 135.85 136.23 136.61 136.99 137.37 137.75 138.13 138.51 90
100 138.51 138.88 139.26 139.64 140.02 140.40 140.78 141.16 141.54 141.91 142.29 100
110 142.29 142.67 143.05 143.43 143.80 144.18 144.56 144.94 145.31 145.69 146.07 110
120 146.07 146.44 146.82 147.20 147.57 147.95 148.33 148.70 149.08 149.46 149.83 120
130 149.83 150.21 150.58 150.96 151.33 151.71 152.08 152.46 152.83 153.21 153.58 130
140 153.58 153.96 154.33 154.71 155.08 155.46 155.83 156.20 156.58 156.95 157.33 140
150 157.33 157.70 158.07 158.45 158.82 159.19 159.56 159.94 160.31 160.68 161.05 150
160 161.05 161.43 161.80 162.17 162.54 162.91 163.29 163.66 164.03 164.40 164.77 160
170 164.77 165.14 165.51 165.89 166.26 166.63 167.00 167.37 167.74 168.11 168.48 170
180 168.48 168.85 169.22 169.59 169.96 170.33 170.70 171.07 171.43 171.80 172.17 180
190 172.17 172.54 172.91 173.28 173.65 174.02 174.38 174.75 175.12 175.49 175.86 190
200 175.86 176.22 176.59 176.96 177.33 177.69 178.06 178.43 178.79 179.16 179.53 200
210 179.53 179.89 180.26 180.63 180.99 181.36 181.72 182.09 182.46 182.82 183.19 210
220 183.19 183.55 183.92 184.28 184.65 185.01 185.38 185.74 186.11 186.47 186.84 220
230 186.84 187.20 187.56 187.93 188.29 188.66 189.02 189.38 189.75 190.11 190.47 230
240 190.47 190.84 191.20 191.56 191.92 192.29 192.65 193.01 193.37 193.74 194.10 240
250 194.10 194.46 194.82 195.18 195.55 195.91 196.27 196.63 196.99 197.35 197.71 250
260 197.71 198.07 198.43 198.79 199.15 199.51 199.87 200.23 200.59 200.95 201.31 260
270 201.31 201.67 202.03 202.39 202.75 203.11 203.47 203.83 204.19 204.55 204.90 270
280 204.90 205.26 205.62 205.98 206.34 206.70 207.05 207.41 207.77 208.13 208.48 280
290 208.48 208.84 209.20 209.56 209.91 210.27 210.63 210.98 211.34 211.70 212.05 290

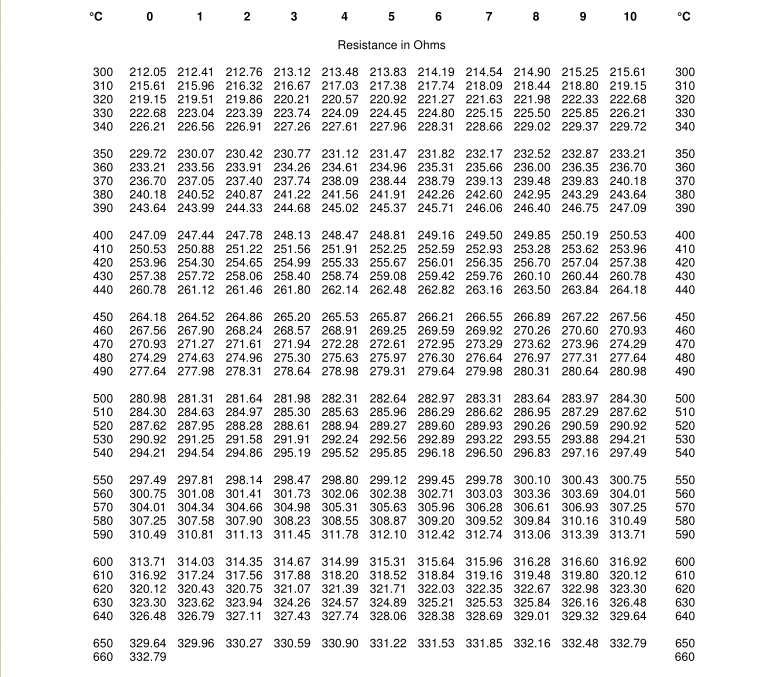

TABLE 29 100 Ω Ω Platinum RTD 0.00385 coefficient
temperature in °C
° °C 0 1 2 3 4 5 6 7 8 9 10 ° °C
Resistance in Ohms
° °C 0 1 2 3 4 5 6 7 8 9 10 ° °C
111 3\UR 0$7,21 ?,1&.
Pt ° °C
300 212.05 212.41 212.76 213.12 213.48 213.83 214.19 214.54 214.90 215.25 215.61 300
310 215.61 215.96 216.32 216.67 217.03 217.38 217.74 218.09 218.44 218.80 219.15 310
320 219.15 219.51 219.86 220.21 220.57 220.92 221.27 221.63 221.98 222.33 222.68 320
330 222.68 223.04 223.39 223.74 224.09 224.45 224.80 225.15 225.50 225.85 226.21 330
340 226.21 226.56 226.91 227.26 227.61 227.96 228.31 228.66 229.02 229.37 229.72 340
350 229.72 230.07 230.42 230.77 231.12 231.47 231.82 232.17 232.52 232.87 233.21 350
360 233.21 233.56 233.91 234.26 234.61 234.96 235.31 235.66 236.00 236.35 236.70 360
370 236.70 237.05 237.40 237.74 238.09 238.44 238.79 239.13 239.48 239.83 240.18 370
380 240.18 240.52 240.87 241.22 241.56 241.91 242.26 242.60 242.95 243.29 243.64 380
390 243.64 243.99 244.33 244.68 245.02 245.37 245.71 246.06 246.40 246.75 247.09 390
400 247.09 247.44 247.78 248.13 248.47 248.81 249.16 249.50 249.85 250.19 250.53 400
410 250.53 250.88 251.22 251.56 251.91 252.25 252.59 252.93 253.28 253.62 253.96 410
420 253.96 254.30 254.65 254.99 255.33 255.67 256.01 256.35 256.70 257.04 257.38 420
430 257.38 257.72 258.06 258.40 258.74 259.08 259.42 259.76 260.10 260.44 260.78 430
440 260.78 261.12 261.46 261.80 262.14 262.48 262.82 263.16 263.50 263.84 264.18 440
450 264.18 264.52 264.86 265.20 265.53 265.87 266.21 266.55 266.89 267.22 267.56 450
460 267.56 267.90 268.24 268.57 268.91 269.25 269.59 269.92 270.26 270.60 270.93 460
470 270.93 271.27 271.61 271.94 272.28 272.61 272.95 273.29 273.62 273.96 274.29 470
480 274.29 274.63 274.96 275.30 275.63 275.97 276.30 276.64 276.97 277.31 277.64 480
490 277.64 277.98 278.31 278.64 278.98 279.31 279.64 279.98 280.31 280.64 280.98 490
500 280.98 281.31 281.64 281.98 282.31 282.64 282.97 283.31 283.64 283.97 284.30 500
510 284.30 284.63 284.97 285.30 285.63 285.96 286.29 286.62 286.95 287.29 287.62 510
520 287.62 287.95 288.28 288.61 288.94 289.27 289.60 289.93 290.26 290.59 290.92 520
530 290.92 291.25 291.58 291.91 292.24 292.56 292.89 293.22 293.55 293.88 294.21 530
540 294.21 294.54 294.86 295.19 295.52 295.85 296.18 296.50 296.83 297.16 297.49 540
550 297.49 297.81 298.14 298.47 298.80 299.12 299.45 299.78 300.10 300.43 300.75 550
560 300.75 301.08 301.41 301.73 302.06 302.38 302.71 303.03 303.36 303.69 304.01 560
570 304.01 304.34 304.66 304.98 305.31 305.63 305.96 306.28 306.61 306.93 307.25 570
580 307.25 307.58 307.90 308.23 308.55 308.87 309.20 309.52 309.84 310.16 310.49 580
590 310.49 310.81 311.13 311.45 311.78 312.10 312.42 312.74 313.06 313.39 313.71 590
600 313.71 314.03 314.35 314.67 314.99 315.31 315.64 315.96 316.28 316.60 316.92 600
610 316.92 317.24 317.56 317.88 318.20 318.52 318.84 319.16 319.48 319.80 320.12 610
620 320.12 320.43 320.75 321.07 321.39 321.71 322.03 322.35 322.67 322.98 323.30 620
630 323.30 323.62 323.94 324.26 324.57 324.89 325.21 325.53 325.84 326.16 326.48 630
640 326.48 326.79 327.11 327.43 327.74 328.06 328.38 328.69 329.01 329.32 329.64 640
650 329.64 329.96 330.27 330.59 330.90 331.22 331.53 331.85 332.16 332.48 332.79 650
660 332.79 660
